HIGH DENSITY COOLING SOLUTION FOR LARGE SCALE DATA CENTER

CITEC CFAC series, commonly known as fan wall or CRAH system, is a high efficient chilled water cooling solution designed to cater for high density cooling demand in large size data center application.

CFAC is designed with a large air discharge area and deliver the cold air directly to the cold aisle with shorten air path, improving the cooling system performance.

With flooded aisle concept, uniform air flow along the cold aisle can be achieved and cooling can be optimized to taller and denser racks.

Without the need of a raised floor system, initial investment and operating cost can be reduced besides eliminating the concern of ceiling height limitations.

PRODUCT FEATURES


  • High efficiency cooling solution with low PUE
  • Front access for main components such as Control panel, EC fan and Filter for easy service and maintenance
  • Enhanced data center security
  • Modular and Stackable system which minimize footprint and maximize redundancy
  • Customizable according to requirements
CFAC Series

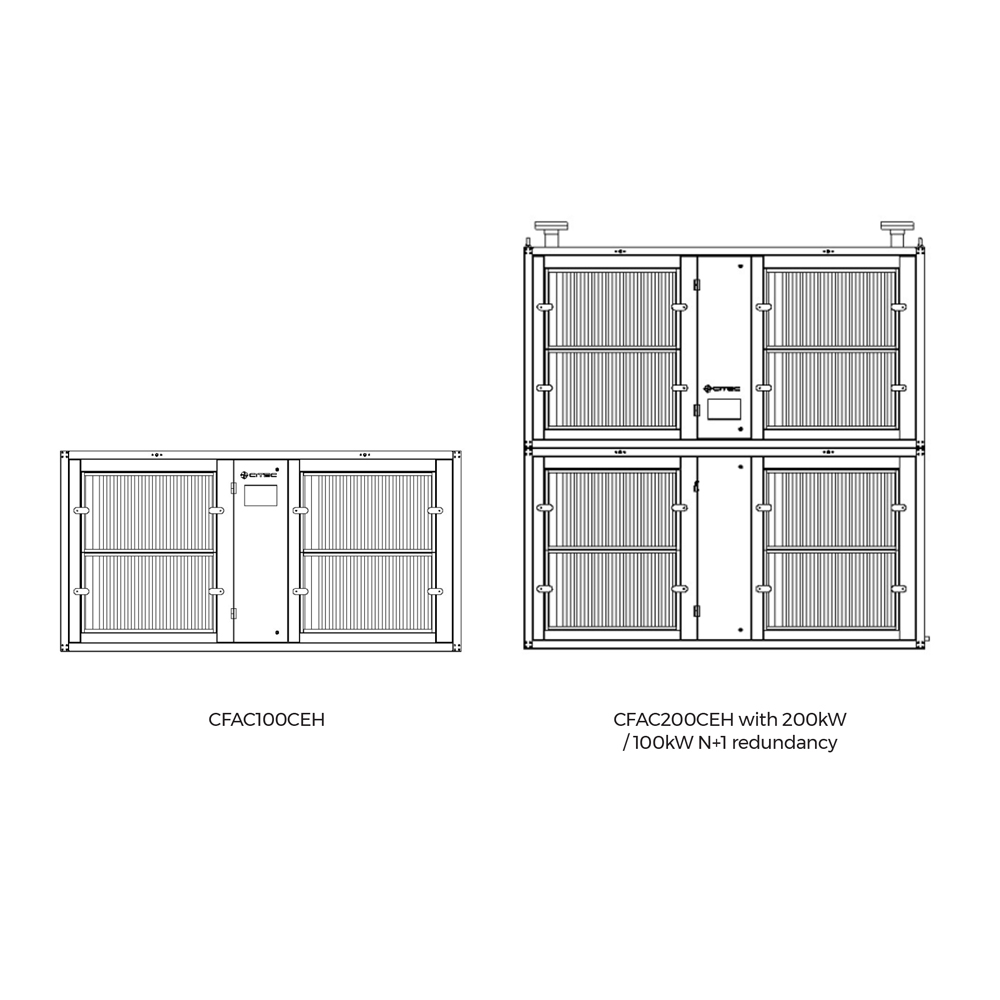

CONFIGURABLE THROUGH MODULARITY

Citec CFAC modular and stackable design allow various configuration to fit various site condition and requirement. Allow optimal solution for maximum capacity per foot print /maximum reliability through redundancy.

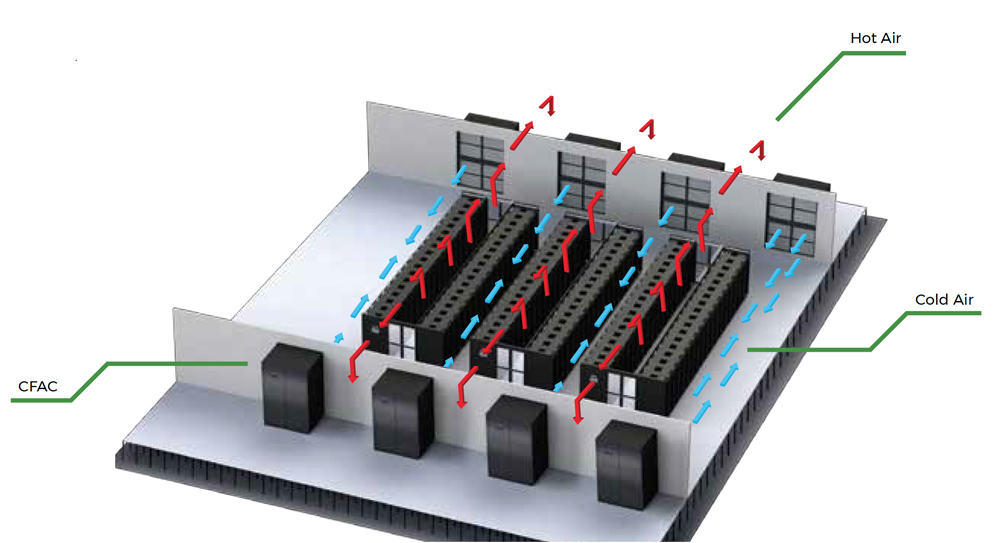

TYPICAL INSTALLATION

Typical installation design to direct supply cold air to data center floor, return through ceiling.
